Description
Product Features & specs :

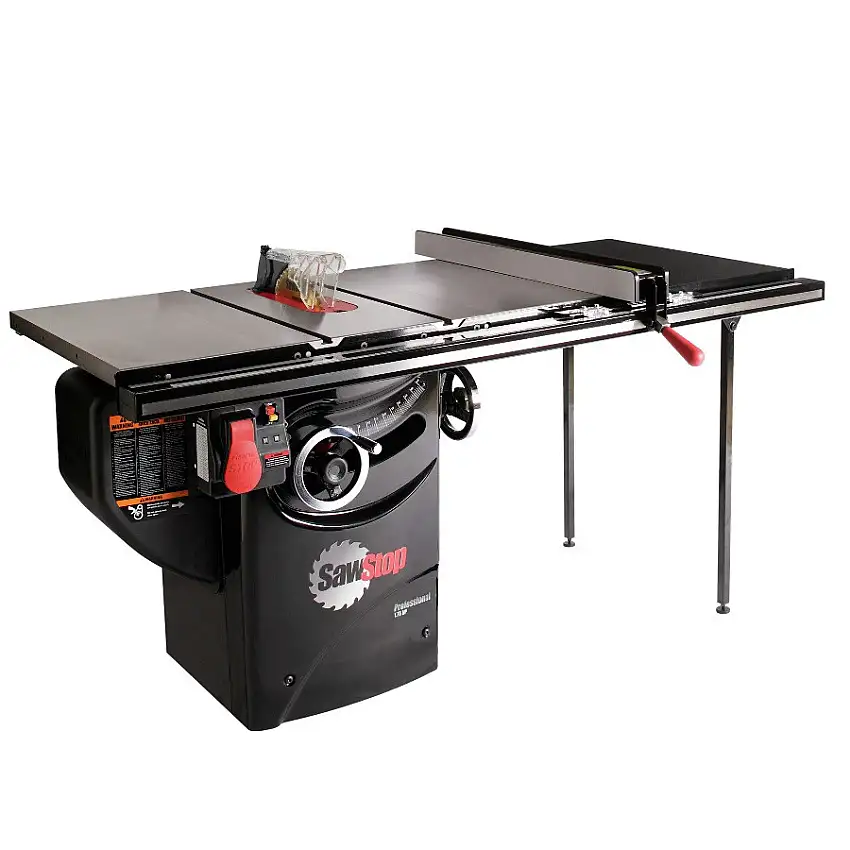

SawStop CNS175-TGP236 110V Single Phase 1.75 HP 14 Amp 10 in. Contractor Saw with 36 in. Professional Series T-Glide Fence System
Details
SawStop’s Contractor Saw offers the highest level of versatility and safety. Whether being used on the jobsite or in the shop, it delivers the high performance needed to get the job done while providing the peace of mind a SawStop patented safety system can offer. Compatible with various rails, bases and attachments, each Contractor Saw offers various combinations of portable and stationary work stations suitable for any type of job.
Features:
-
SawStop’s patented safety system stops the blade on contact with skin, reducing the risk of serious accidents and injuries
-
All purpose safety and mobility suitable for both jobsites and work shops
-
Rugged 110V motor (configurable to 220V) delivers a higher level of performance and power
-
Tool-free quick change mount allows for fast and easy transitions between guard and riving knifes
-
Professional fence systems deliver the straightest and most accurate cuts possible
-
Enhanced dust collection increases dust and debris removal to provide a cleaner and safer work environment (Includes standard Micro Blade Guard, optional Dust Collection Blade Guard Sold Separately)
-
Compatible with both 10 in. standard blades as well as 8 in. dado blade sets for maximum versatility
-
Unmatched quality of construction provides a durable and reliable saw that’s built to last
-
Please Note:Unit includes Standard Base, optional Jobsite Cart and Mobile Base sold separately
What’s Included:
-
110V Single Phase 1.75 HP Contractor Saw with 36 in. Professional Series T-Glide Fence System – CNS175-TGP236
-
(2) Steel Extension Wings
-
(1) Miter Gauge
-
(1) Micro Blade Guard
-
(1) Riving Knife
-
(2) Blade Wrenches
-
(1) Push Stick
-
(1) 10 in. Blade
-
(1) Table Insert
-
(1) Standard Brake Cartridge
-
(2) Hardware Packs
-
(1) 3mm Hex Key
-
(1) 5mm Hex Key
-
(1) 8mm Hex Key
-
(1) Blade Spacing Adjustment Gauge
-
(1) Owner’s Manual
-
(1) Assembly Instructions
- Manual 1
- Manual 2
| Power Source | Corded |
|---|---|
| Blade Guard System | Yes |
| Dado Blade Width (Max.) | 13/16 in |
| Fence Length | 36 in |
| PreWired Voltage | 110V |
| Table Type | Cast Iron |
| Wing Type | Steel |
| Amperage | 14 |
| UL Safety | No |
| Wifi compatibility | No |
| Rip Capacity (Right) | 36-1/2 in |
| Blade Diameter | 10 in |
| Bluetooth Compatibility | No |
| Dust Collection | Yes |
| Blade Tilt | Left |
| Motor Type | Induction |
| Dado Blade Diameter (Max.) | 8 in |
| Table Width (w/ Wings) | 44 in |
| Table Width (w/ Extension) | 69-1/8 in |
| Arbor Size | 5/8 in |
| Depth of Cut (45 Degrees) | 2-1/4 in |
| Blade Tilt Range | 0 – 45 Degrees |
| No-Load Speed (RPM) | 4000 |
| Depth of Cut (90 Degrees) | 3-1/8 in |
| CSA Safety | Yes |
| Max. Rip Capacity (Left) | 12-1/2 in |
| Table Width | 20 in |
| Table Height | 35-3/4 in |
| Motor Phase | 1 |
| Horsepower | 1.75 |
| Voltage | 110V |
| Table Depth | 27 in |
| Rip Capacity (Left) | 12-1/2 in |
| ETL Safety | No |
| Width | 69.125 in. |
| Height | 34.75 in. |
| Depth | 45 in. |
| Weight | 310 lbs. |
| Warranty Term | 2 Year |
