Description
Product Features & specs :

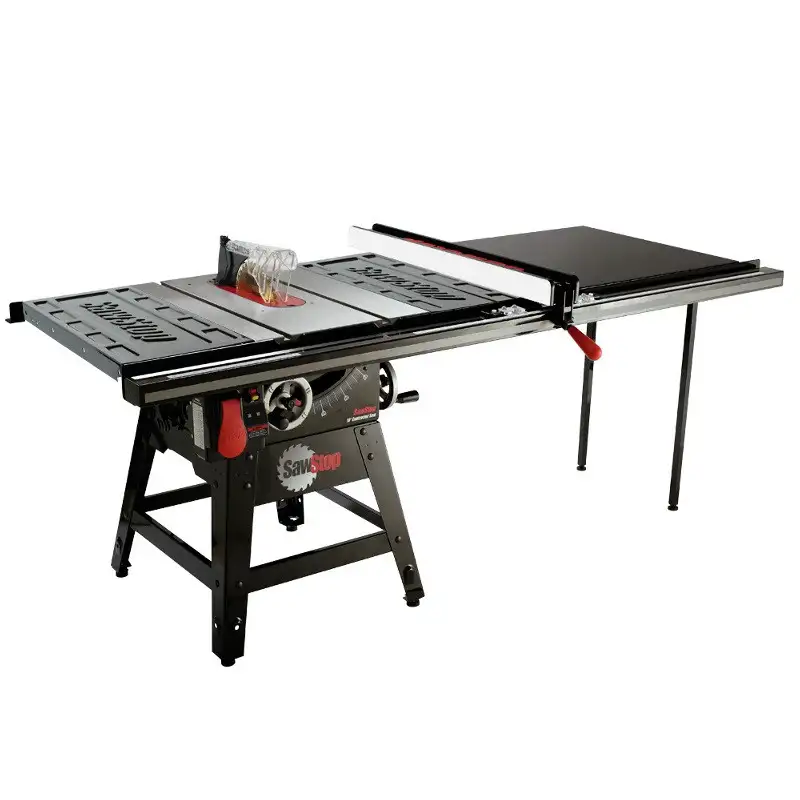

SawStop PCS175-TGP236 110V Single Phase 1.75 HP 14 Amp 10 in. Professional Cabinet Saw with 36 in. Professional Series T-Glide Fence System
Details
Delivering the best of both worlds, the Professional 1.75 HP Cabinet Saw is engineered to fit the demands of the avid hobbyist while providing a more accessible and conveniently sized unit. Complete with SawStop’s legendary safety system, uncompromising quality and industry-leading dust collection, the PCS175’s optimized footprint and 110V power make it ideal for the various challenges of the do-it-yourselfer and a cornerstone for the high-end home shop or workshop.
Features:
-
SawStop’s patented safety system stops the blade on contact with skin, reducing the risk of serious accidents and injuries
-
Precise performance and safety optimized for the hobbyist, do-it-yourselfer and home shop
-
Rugged 110V motor (configurable to 220V) delivers a higher level of performance and power
-
Tool-free quick change mount allows for fast and easy transitions between guard and riving knifes
-
Professional fence systems deliver the straightest and most accurate cuts possible
-
Unmatched quality of construction provides a durable and reliable saw that’s built to last
-
Enhanced dust collection increases dust and debris removal to provide a cleaner and safer work environment (Includes standard Micro Blade Guard, optional Dust Collection Blade Guard Sold Separately)
-
Compatible with both 10 in. standard blades as well as 8 in. dado blade sets for maximum versatility
-
Please Note:Mobile Base sold separately
What’s Included:
-
110V Single Phase 1.75 HP Professional Cabinet Saw with 36 in. Professional Series T-Glide Fence System – PCS175-TGP236
-
(2) Cast Iron Extension Wings
-
(1) Miter Gauge
-
(1) Micro Blade Guard (1.75HP Models)
-
(1) Riving Knife
-
(2) Blade Wrenches
-
(1) Push Stick
-
(1) 10 in. Blade
-
(1) Table Insert
-
(1) Standard Brake Cartridge
-
(2) Hardware Packs
-
(1) 3mm Hex Key
-
(1) 5mm Hex Key
-
(1) 8mm Hex Key
-
(1) Blade Spacing Adjustment Gauge(1) Owner’s Manual
- Manual 1
- Manual 2
| Power Source | Corded |
|---|---|
| Dado Blade Width (Max.) | 13/16 in |
| Fence Length | 36 in |
| PreWired Voltage | 110V |
| Table Type | Cast Iron |
| Wing Type | Cast Iron |
| Amperage | 14 |
| UL Safety | No |
| Fence Type | T-Glide |
| Rip Capacity (Right) | 36 in |
| Blade Diameter | 10 in |
| Bluetooth Compatibility | No |
| Blade Tilt | Left |
| Motor Type | Induction |
| Dado Blade Diameter (Max.) | 8 in |
| Table Width (w/ Wings) | 44 in |
| Table Width (w/ Extension) | 69-1/8 in |
| Arbor Size | 5/8 in |
| Depth of Cut (45 Degrees) | 2-1/4 in |
| Blade Tilt Range | 0 – 45 Degrees |
| No-Load Speed (RPM) | 4000 |
| Depth of Cut (90 Degrees) | 3-1/8 in |
| Max. Rip Capacity (Right) | 36 in |
| CSA Safety | Yes |
| Max. Rip Capacity (Left) | 12 in |
| Table Width | 20 in |
| Motor Phase | 1 |
| Horsepower | 1.75 |
| Voltage | 110V |
| Table Depth | 27 in |
| Rip Capacity (Left) | 12 in |
| ETL Safety | No |
| Width | 69.125 in. |
| Height | 34 in. |
| Depth | 33 in. |
| Weight | 408 lbs. |
| Warranty Term | 2 Year |
