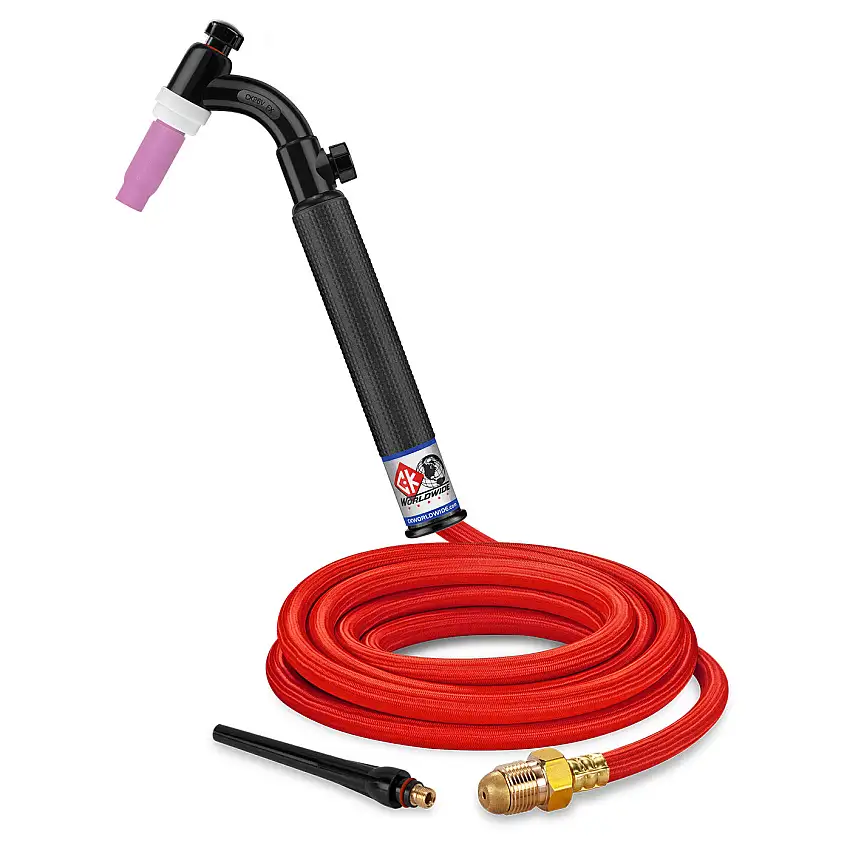

The CK26V flex head TIG torch with integrated valve delivers 200 amp AC/DC welding capacity at 100% duty cyclewith CK Worldwide’s signature 40-degree articulating head for enhanced access in tight joints. The integrated valve provides fingertip gas flow control without reaching for remote controls, while superflex cables maximize maneuverability around the workspace.

• 200 amprating on AC high frequency or DC straight polarity at 100% duty cycle
• Flex head designarticulates 40 degrees in any direction for improved joint access
• Integrated valveon handle for convenient gas flow control
• Gas-cooledconstruction optimized for heat dissipation
• 12.5 foot superflex cableswith 7/8″ x 14RH power cable connections
• 3 Series head accessoriescompatibility for wide consumable selection
• Torch length: 9-5/8″ (24.4cm), Weight: 7-1/2 oz (212gm)

Compatible Consumables

• 300S— Short Backcap
• 300L— Long Backcap
• 3C116— 1/16″ Collet
• 3C332— 3/32″ Collet
• 3C418— 1/8″ Collet
• 3CB116— 1/16″ Collet Body
• 3CB332— 3/32″ Collet Body
• 3CB418— 1/8″ Collet Body
• 3A5— #5 Alumina Cup (5/16″)
• 3A6— #6 Alumina Cup (3/8″)

This torch accepts standard 3 Series consumables and works with most Miller, Lincoln, and ESAB TIG welders equipped with standard 7/8″ x 14RH torch connections. The valve-equipped handle reduces operator fatigue during long welding sessions by eliminating the need for foot pedal gas control in many applications.
