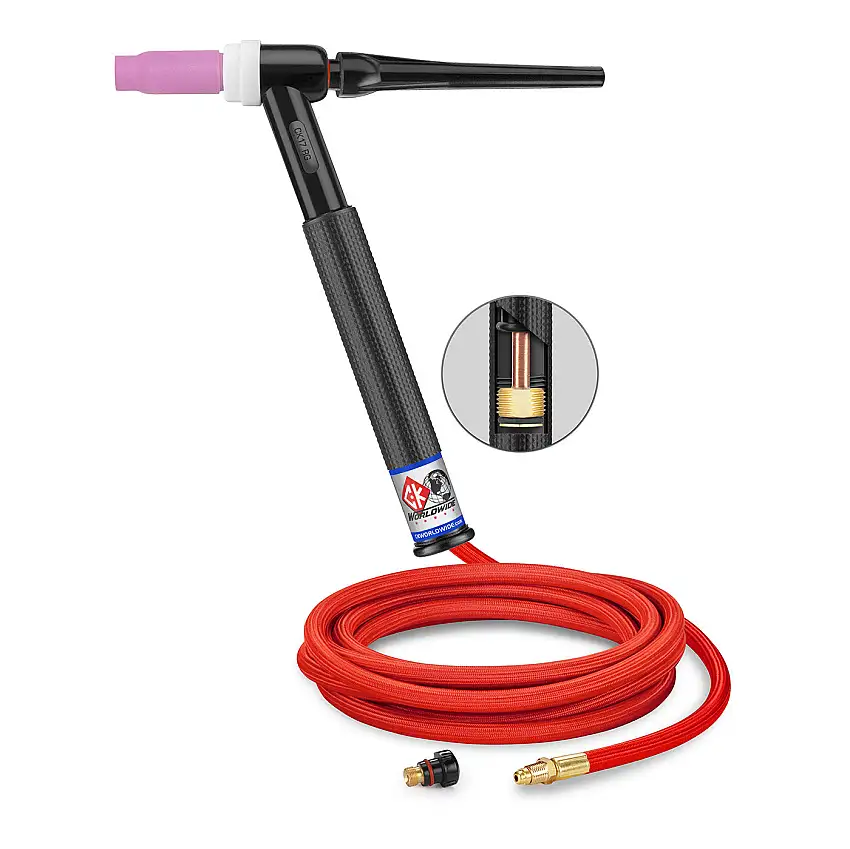

The CK Worldwide CK17P-12-RSF delivers 150-amp TIG welding performance in a lightweight 3 oz pencil configuration, designed for precision work in tight spaces where maneuverability and reduced operator fatigue are critical.

This gas-cooled torch operates at 100% duty cycleon both AC high frequency and DC straight polarity applications. The 12.5-foot SuperFlex cableprovides exceptional flexibility while maintaining signal integrity, and the pencil-style rigid head weighs only 3 oz (85gm)for extended use comfort. Gas-cooled design eliminates the complexity and maintenance requirements of water cooling systems.

• 150-amp capacityat 100% duty cycle for continuous operation
• Pencil-style rigid headweighs only 3 oz (85gm)
• 12.5-foot SuperFlex cablefor maximum flexibility and reach
• Gas-cooled designeliminates coolant systems and maintenance
• 8-1/2″ (21.6cm)overall length for compact workspace access
• Compatible with AC high frequency and DC straight polarity welding

Compatible Consumables

• 300S— Short Backcap
• 300L— Long Backcap
• 3C040— .040″ (1.0mm) Collet
• 3C116— 1/16″ (1.6mm) Collet
• 3C332— 3/32″ (2.4mm) Collet
• 3CB116— 1/16″ (1.6mm) Collet Body
• 3CB332— 3/32″ (2.4mm) Collet Body
• 3A5— #5 (5/16″ 8.0mm) Alumina Cup
• 3A6— #6 (3/8″ 9.6mm) Alumina Cup
• T1167GC2— 1/16″ x 7″ 2% Ceriated Tungsten

Ideal for fabrication shops requiring precise TIG welding in confined areas, automotive repair, artistic metalwork, and anywhere reduced torch weight and superior cable flexibility enhance welding quality and operator comfort.
