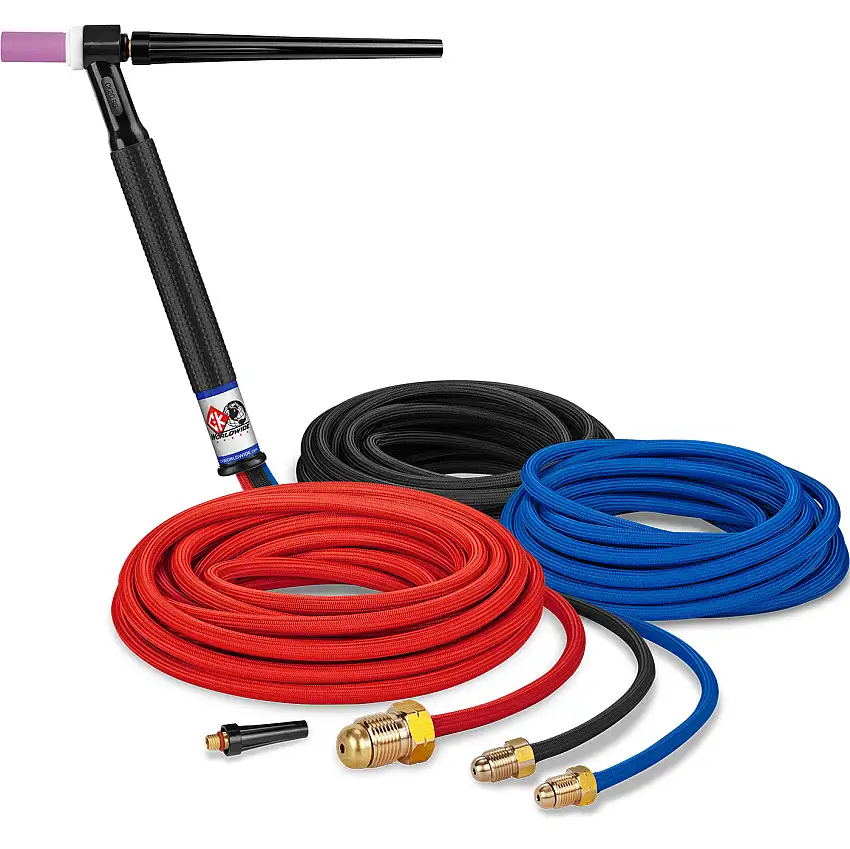

The CK Worldwide CK20-25SF delivers reliable 250-amp TIG welding performance with water-cooled operation and 25-foot superflex cables for maximum mobility in demanding production environments. This rigid head torch maintains 100% duty cyclecapacity for continuous welding applications requiring extended reach and superior heat dissipation.

Built with CK’s proven 2 Series head design, this torch provides stable arc control and precise welding performance. The water-cooled system with Max Flow technology ensures consistent operation even during high-amperage continuous welding. The 25-foot superflex cable assembly offers extended reach without sacrificing flexibility or durability.

• 250 amp ratingat 100% duty cycle on AC high frequency or DC straight polarity
• Water-cooled designwith Max Flow technology for superior heat dissipation
• 25-foot superflex cablesprovide extended reach without sacrificing flexibility
• Rigid head constructionensures stable arc control and precise welding
• 5/16″ x 24 thread patternfor 2 Series consumables
• Overall length:7-1/2″ (19.0cm)
• Weight:3 oz (85gm)

Compatible Consumables

• 2A4— #4 (1/4″) Alumina Cup
• 2A5— #5 (5/16″) Alumina Cup
• 2A6— #6 (3/8″) Alumina Cup
• 2A7— #7 (7/16″) Alumina Cup
• 2A8— #8 (1/2″) Alumina Cup
• 2C116— 1/16″ Collet
• 2C332— 3/32″ Collet
• 2CB116— 1/16″ Collet Body
• 2CB332— 3/32″ Collet Body
• 200L— Long Back Cap

Compatible with all CK 2 Series consumables and accessories. Ideal for production welding applications requiring extended reach, continuous operation, and precise arc control in aluminum, stainless steel, and exotic alloy fabrication.
