Description
Features & benefits
- Standard safety system with threaded sleeves for perfect positioning of the blades
- Delivery withoutprofile knife and deflector
- Suitable for all stationary tables
- Important:MAN – for manual feed!

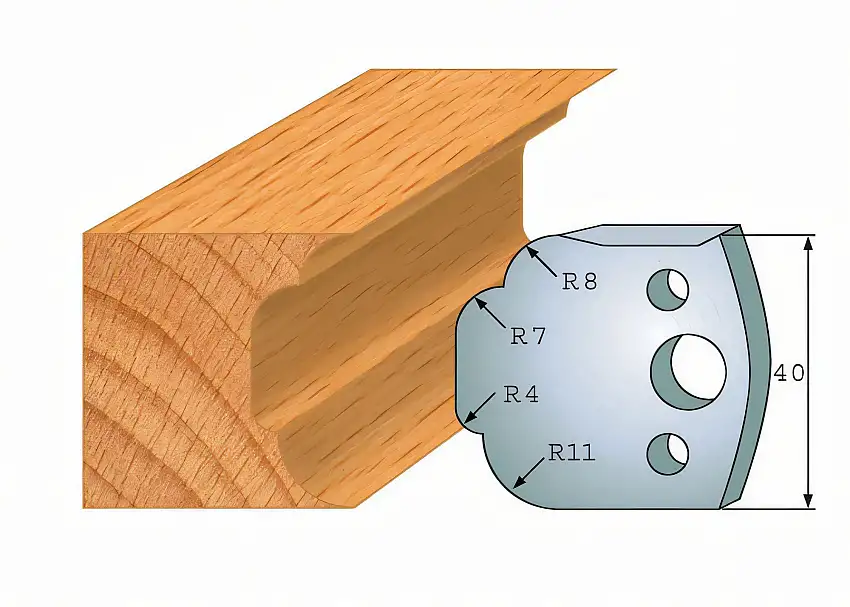

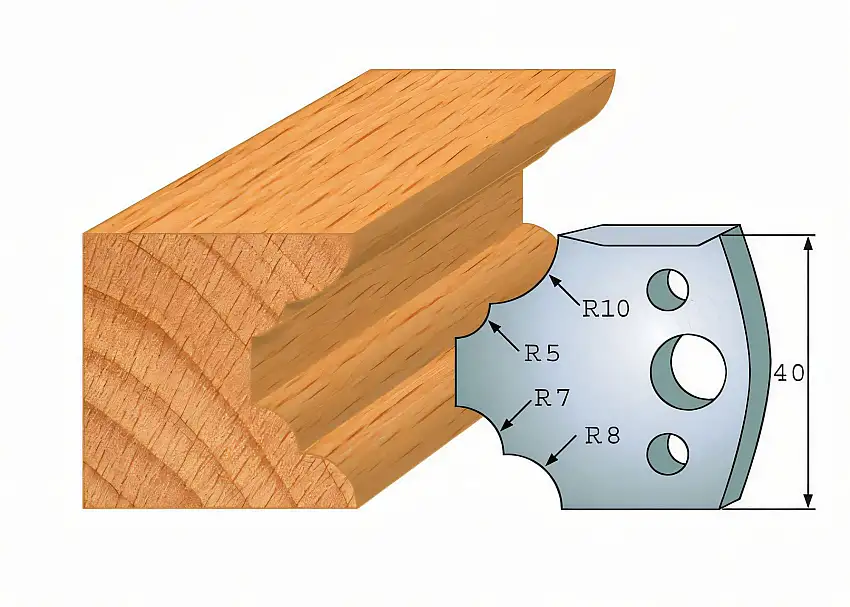

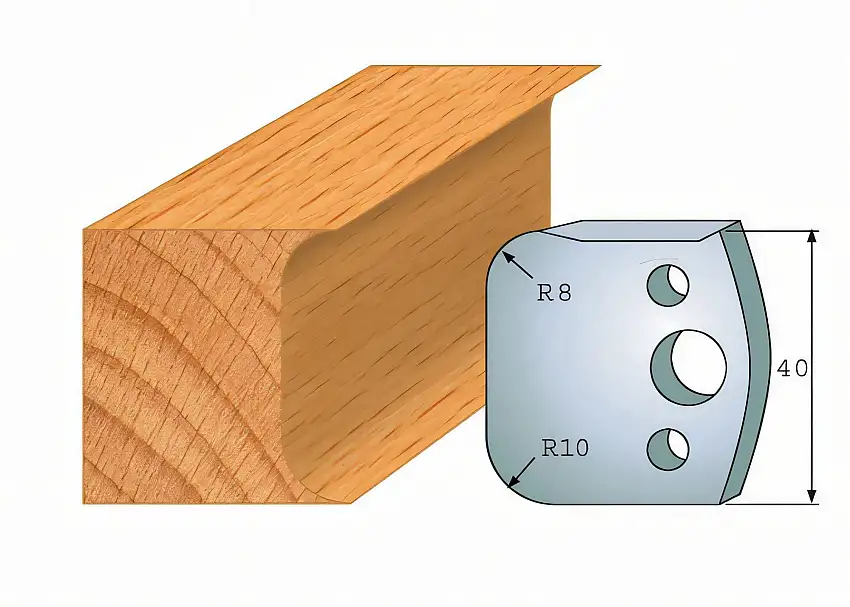

- All moulding knives with the art. no. I-F26-…(40mm cutting width) or I-F27-... (50mm cutting width) can be used
| Universal profile cutter head for manual feed MAN | |
|---|---|
| Technical data | |
| Ø device body Dh | 120 mm |
| Ø Total D | 156 mm |
| Cutting width B | 40 – 50 mm |
| Ø mandrel d | 30 mm |
| RPM | min. 5100 – max. 7400 |
| Base body | aluminium |
