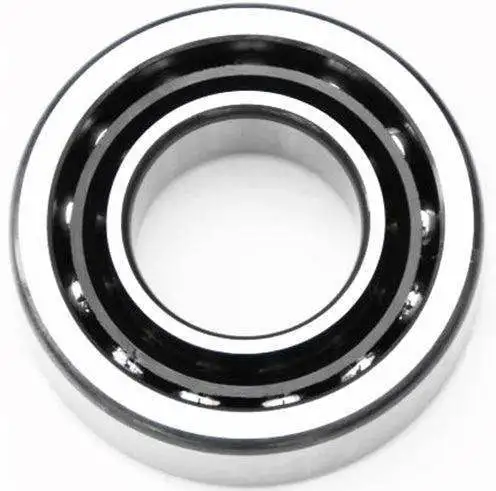

Description
- Inner diameter (d): 40mm
- Outer diameter (D): 80mm
- Width (B): 18mm
- Static Basic Load Ratings (C_o): 26kN
- Dynamic Basic Load Ratings (c): 36.4kN
- Limiting Speed: 10000 revolutions per minute
- Fatigue Limit Load (P_u): 1.1kN
- Weight: 0.38 kg
This bearing is typically used in applications that require high precision and durability, and it’s widely used in various industries like metallurgy, railway, papermaking, cement, engineering machinery, power, transmission equipment, automotive, and aerospace
| Code | Bearing Type |
|---|---|
| 0 | Double row angular contact ball bearing |
| 1 | Self-aligning ball bearing |
| 2 | Spherical roller bearing / Spherical roller thrust bearing |
| 3 | Tapered roller bearing |
| 4 | Double row deep groove ball bearing |
| 5 | Thrust ball bearing |
| 6 | Single row deep groove ball bearing |
| 7 | Single row angular contact ball bearing |
| 8 | Cylindrical roller thrust bearing |
