Description
Features & benefits
- Versatiledue to extensive accessories
- Powerfulthanks to CUprex high-performance engine. Concentrated power and high pulling power
- Preciselyadjustable thanks to sophisticated depth adjustment and optimally readable scales
- Slots up to 50 mm deep and 60 mm wide can be produced effortlessly in no time at all
- Cutting head stops after 3 seconds by hydraulic brake
- Flashing LED always informs the user about the cutting tool still rotating
- 45° pivoting cutting head.
- Rotatable 58mm extraction socket reliably transports large quantities of chips
- With the supplied side stop, grooves with a grid dimension of 62.5 cm can be repeated in any order without time-consuming marking
- With the position indicator, the right side of the tool can always be displayed visibly

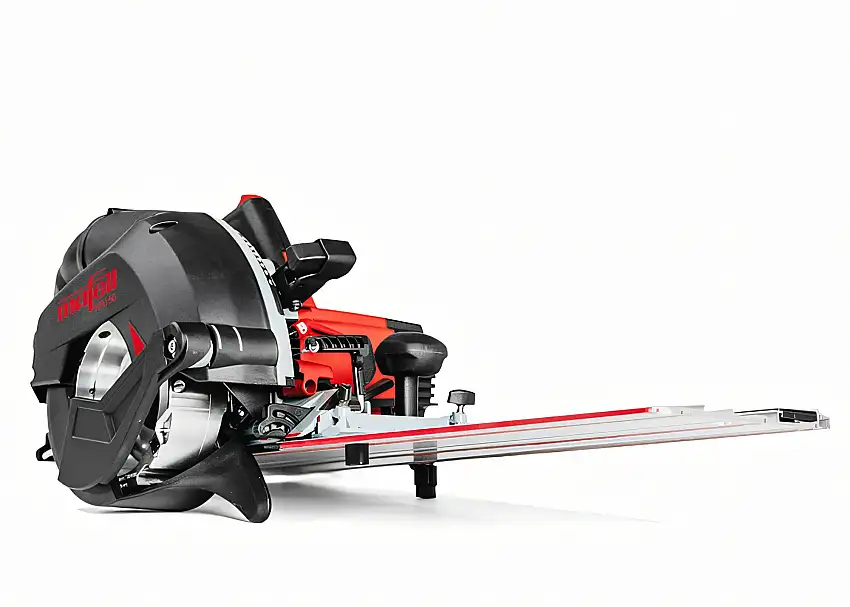

| MAFELL Groove Cutter NFU 50 | |
|---|---|
| Flexible all-round machine for the most varied routing jobs in timber construction! | |
| Technical data | |
| Cutting depth | 0 – 50 mm |
| Swivel range | 0 – 45° |
| Nominal operating speed | 5,900 rpm |
| Dimensions W x L x H (with guiding device L) | 370 x 810 x 280 mm |
| Machine length (with guiding device L) | 370 mm |
| Nominal power consumption | 2300 W |
| Nominal voltage | 230 V |
| Weight | 9,4 kg |
