Description
Features & benefits
- Perfect single-column guidancethrough an innovative adjustment mechanism. The 80 mm high and vertically mounted guide rollers reliably prevent the drill from running out of the drill prevented.
- The tensile force of the polythene rope can be individually adjusted, e.g. to reduce the feed pressure when working horizontally. After drilling, the machine automatically moves into the starting position back.
- Adjustable on both pivotsidesand precisely over a scale of +/- 45° and lockable at 0° (S-variants)
- Application areas: Precision and series drilling, angular drilling,
- Materials: e.g. solid wood and glued laminated timber
- The drilling station impresses with its clever design based on the robust and light aluminium profile column

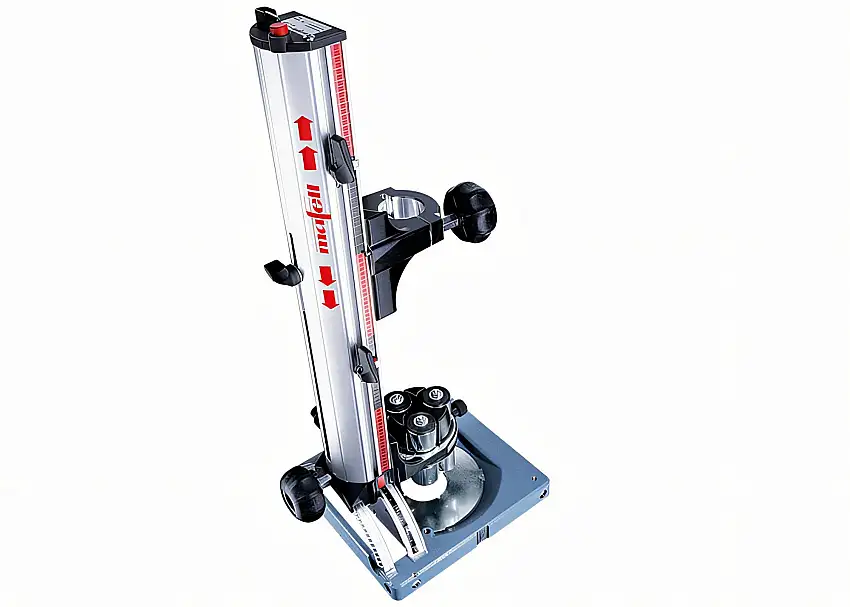

| Mafell drilling station BST 650 S | |
|---|---|
| Impressive through highest precision | |
| Technical data | |
| Max. Tool-Ø at 0° | 130 mm |
| Max. Tool Ø at 45° | 100 mm |
| Clamping neck | 43 mm |
| Pivoting range, both sides | 45 |
| Max. Drill length | 650 mm |
| Max. Drilling depth | 455 mm |
| Weight | 5,4 kg |
