Description
Features & benefits
- Optimal centre of gravity for fatigue-free work – no matter which attachment or battery is used.
- Due to the excellent workmanship and the oval handle shape, the ASB18 fits ergonomically in the hand
- Bright LED lights with afterglow function provide wide-area illumination of the working area
- Real percussion drilling function even for the heaviest drilling work in masonry
- 4 magnetic bit holders, recessed on the side, on the cordless drill/driver
- Spindle with 1/4″ socket for direct insertion of bits and quick-change accessories
- The switch enables sensitive metering for filigree work
- Impulse function provides the decisive plus, e.g. for jammed screws and when drilling smooth surfaces
- Electronic anti-kickback function (active motor cut-off) protects the wrist from sudden rotation
- Maximum torque of 130 Nm makes the ASB18 a powerful all-rounder
- 10-stage torque preselection can be conveniently set using the detent function on the rotary wheel
- 2 spirit levels on the housing allow optimum control of the 90° angle when attaching (horizontal & vertical)
- T-MAX (transport case) included
- NOTE: Charger and batteries NOT included

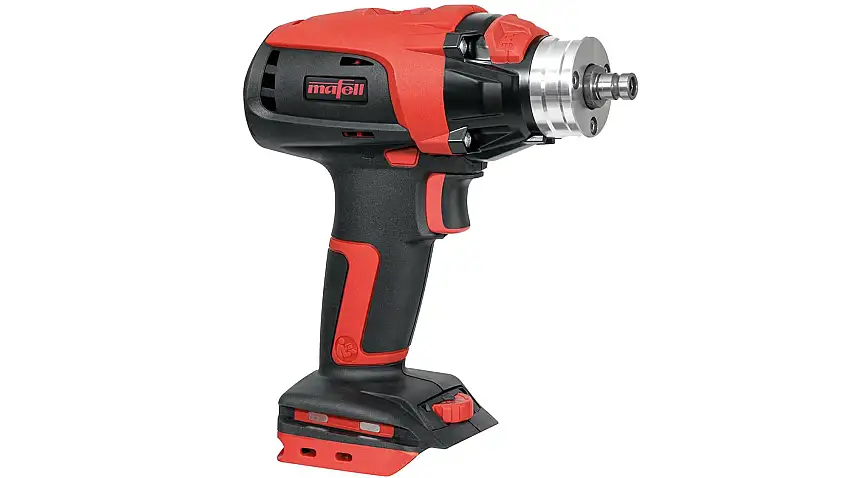

| MAFELL BATTERY-POWERED IMPACT DRILL ASB18 | |
|---|---|
| The ASB18 cordless impact drill: the powerful all-rounder for extreme challenges! | |
| Technical data | |
| Drill chuck clamping width | 13 mm |
| Dimensions (L x W x H) | 163x79x201 mm |
| Clamping neck Ø | 43 mm |
| Maximum drill diameter (wood/steel) | 68/13 mm |
| Torque soft/hard | 65/130 Nm |
| Impact speed | 38,000 I/min |
| Rated idling speed, 1st gear | 0 – 560 rpm |
| Rated idling speed, 2nd gear | 0 – 1960 rpm |
| Weight (incl. battery) | 1.9 kg |
| Rated voltage | 18 V |
| Torque steps | 10 + 1 |
| Vibrations (measured in metal/reinforced concrete) | <2.5/15.5 m/s² |
| Sound pressure level | 92 dB (A) |
| Sound power level (LwA) | 103 dB (A) |
