Description
Features & benefits
- Heavy duty 3000 Watt motor for extreme 185 mm cutting performance!
- Soft start, constant speed under load, speed reduction and overload protection
- Constant crack pointer for 0° to 60° due to exact pivot point, which is located on the underside of the base plate
- Easy to operate stop system, low noise emission and remote controlled pendulum protection hood
- High quality standard – means for you: lower machine costs and longer service life
- Smooth height adjustment with easily readable scale and effective brake ensure perfect cutting results and optimum operator safety
- The circular saw for general joinery work with bevel cuts up to 60°
- Unique ratio between maximum stability and minimum weight
- In-house CUprex high performance motor

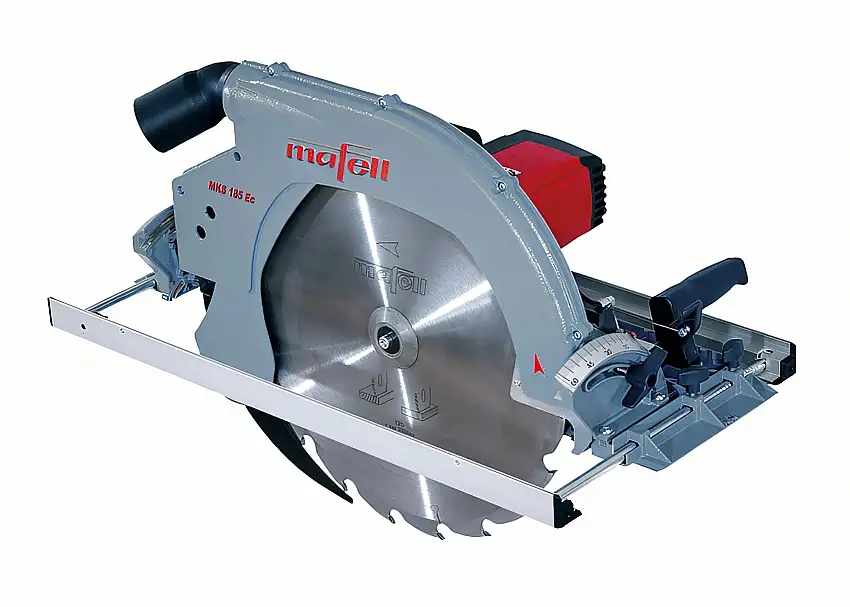

| Mafell carpentry circular saw MKS 185 Ec | |
|---|---|
| Unique ratio between maximum stability and minimum weight | |
| Technical data | |
| Saw blade Ø | 450 x 30 |
| Cutting depth at 0° | 105 – 185 mm |
| Cutting depth at 45° | 74 – 131 mm |
| Cutting depth at 60° | 53 – 93 mm |
| Pivoting range | 0 – 60 |
| Nominal idle speed | 1400 – 1700 rpm |
| Nominal power consumption | 3000 W |
| Weight (without saw blade) | 16,1 kg |
