Description
Features & benefits
- Adjustable in 0.1 mm steps
- Use on sliding table saws
- As a rule, DADO grooving saw blades can be used on all common European machines – also thanks to the universal side holes
- Chip thickness limited design for safe working according to DIN EN 847-1

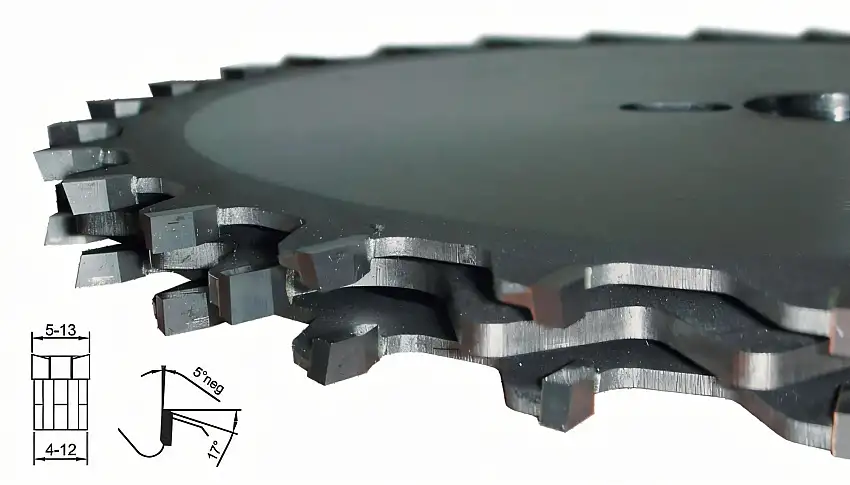

| HM Dado circular saw blade set for precision grooves | |
|---|---|
| For precise grooving of wood, plywood, chipboard or MDF (also coated or veneered) | |
| Technical data | |
| Edge saw blade right | diameter 200 mm – cutting width 4.15 mm – blade thickness 2.0 mm – bore 30 mm – 24 teeth – 5° neg. – side hole combination for 2/10/60 mm, 2/9/46 and 2/7/46 mm |
| Edge saw blade left | Diameter 200 mm – cutting width 4,15 mm – blade thickness 2,0 mm – bore 30 mm – 24 teeth – 5° neg. – side hole combination for 2/10/60 mm, 2/9/46 and 2/7/46 mm |
| Hogger saw blade | diameter 200 mm – cutting width 5,20 mm – blade thickness 3,20 mm – bore 30 mm – 4 teeth – 5° neg. |
| Spacers | 2 x 1.0 mm; 2 x 0.5 mm; 2 x 0.3 mm; 4 x 0.2 mm; 4 x 0.1 mm |
