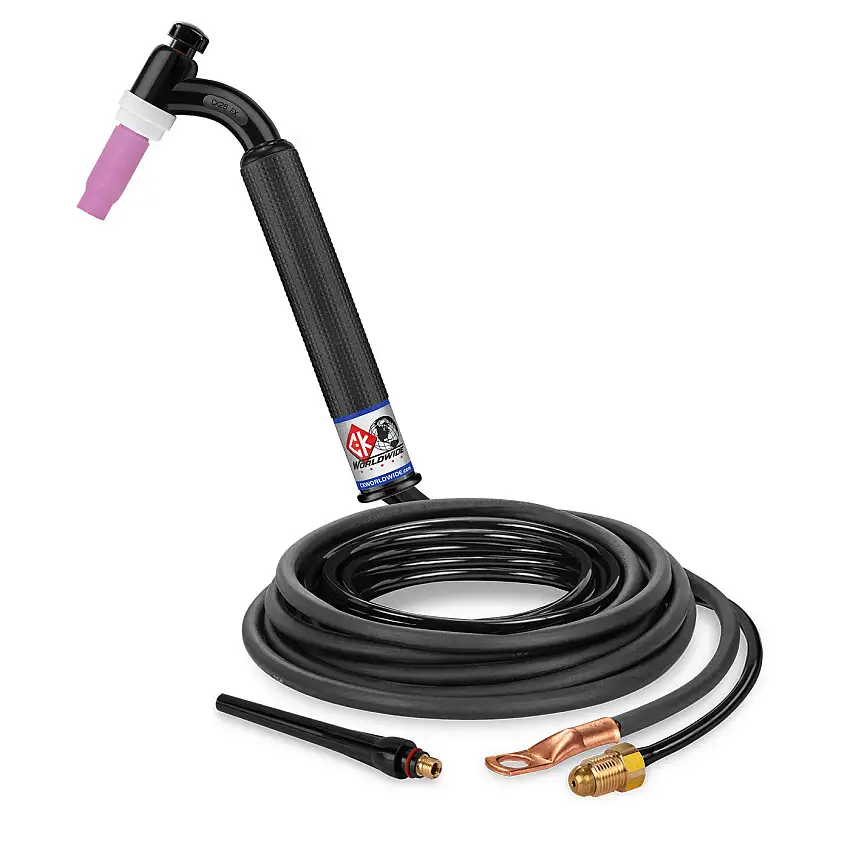

The CK26-12-2 FX delivers professional-grade TIG welding performance with CK Worldwide’s signature 40-degree flex head that pivots in any direction for enhanced access in tight spaces. This gas-cooled workhorse handles 200 amps at 100% duty cycleon both AC high frequency and DC straight polarity applications.

Built with a streamlined design that eliminates the gas valve for reduced weight and simplified operation, this torch features 12.5-foot standard cablesin a convenient 2-piece configuration. The flex head construction allows welders to maintain proper torch angle without repositioning their entire setup, making it ideal for complex fabrication work and confined area welding.

• 200 amprating at 100% duty cycle ACHF/DCSP
• 40-degree flex headarticulation in any direction
• Gas-cooled designfor maximum heat dissipation
• 2-piece cable configurationfor versatility
• 12.5-foot cable lengthfor extended reach
• 7/8″ x 14RH power cable connections
• 9-5/8″ overall length, 7-1/2 oz weight
• No gas valve design for streamlined operation
• Compatible with 3 Series head accessories

Compatible Consumables

• 3C040GS— .040″ Wedge Collet
• 3C116GS— 1/16″ Wedge Collet
• 3C332GS— 3/32″ Wedge Collet
• 3C418GS— 1/8″ Wedge Collet
• 3CBGS— Collet Body
• 3A4GS— #4 Alumina Cup
• 3A5GS— #5 Alumina Cup
• 3A6GS— #6 Alumina Cup
• 300L— Long Backcap
• 300S— Short Backcap

This torch accepts standard 3 Series consumables and is compatible with CK’s GasSaver kit system for up to 40% shield gas savings. The flex head design makes it particularly effective for pipe welding, structural fabrication, and any application requiring precise torch positioning in challenging orientations.
