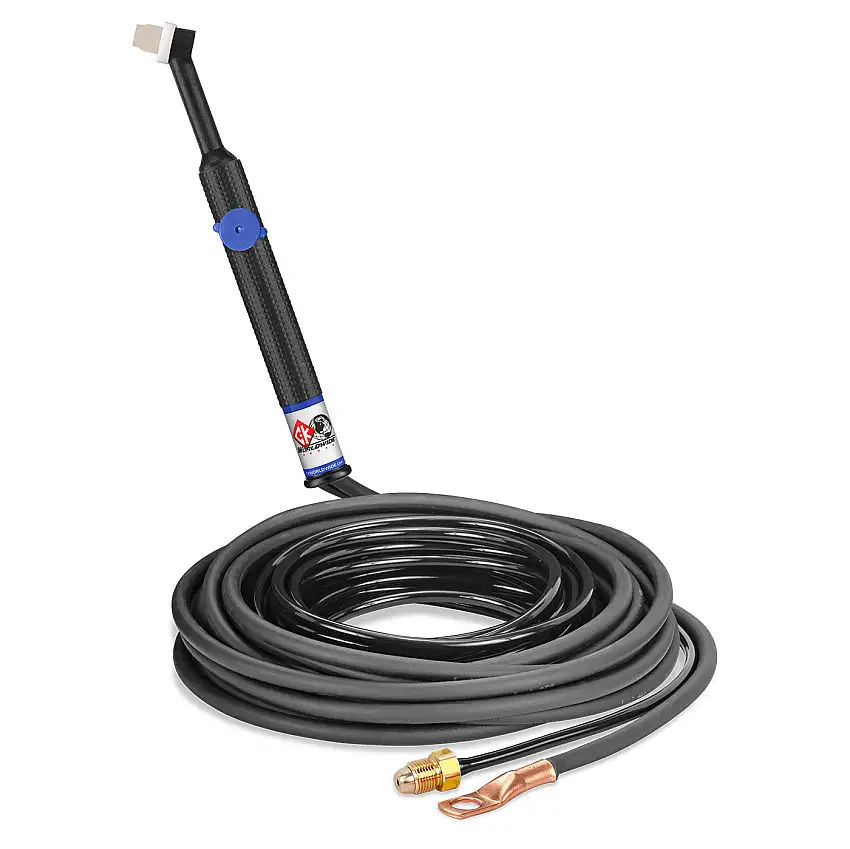

The CK24V-25-2 RG delivers 80 ampTIG welding capacity with integrated valve control in a gas-cooled, rigid head configuration. Built for 100% duty cycleoperation, this torch provides the stability and precision demanded by professional welders working on critical applications.

This torch features a rigid head designfor maximum arc stability and consistent tungsten positioning. The integrated valve on the handle provides direct gas flow control, eliminating the need for remote gas control systems. Gas-cooled operation ensures reliable performance while keeping operating costs low compared to water-cooled alternatives.

• 80 amp ratingat 100% duty cycle (ACHF or DCSP)
• Rigid headfor superior arc stability and precision
• Integrated valvefor convenient gas flow control
• Gas-cooled designfor efficient heat dissipation
• 25-foot cable lengthfor extended reach
• Standard 1-piece cableconfiguration
• 8-1/4 inchoverall length, 2-1/4 ozweight
• Compatible with 8 Series consumables and accessories

Compatible Consumables

• 2C40— .040″ (1.0mm) Collet
• 2C116— 1/16″ (1.6mm) Collet
• 2CB40— .040″ (1.0mm) Collet Body
• 2CB116— 1/16″ (1.6mm) Collet Body
• 2A4— #4 (1/4″) Alumina Cup
• 2A5— #5 (5/16″) Alumina Cup
• 2A6— #6 (3/8″) Alumina Cup
• 200L— Long Backcap
• 24HVR— Replacement Handle for CK24V RG
• VKS— Valve Kit

The CK24V-25-2 RG is ideal for fabrication shops, maintenance operations, and production environments where consistent, high-quality TIG welds are essential. Compatible with standard 8 Series consumables for cost-effective operation and easy parts availability.
