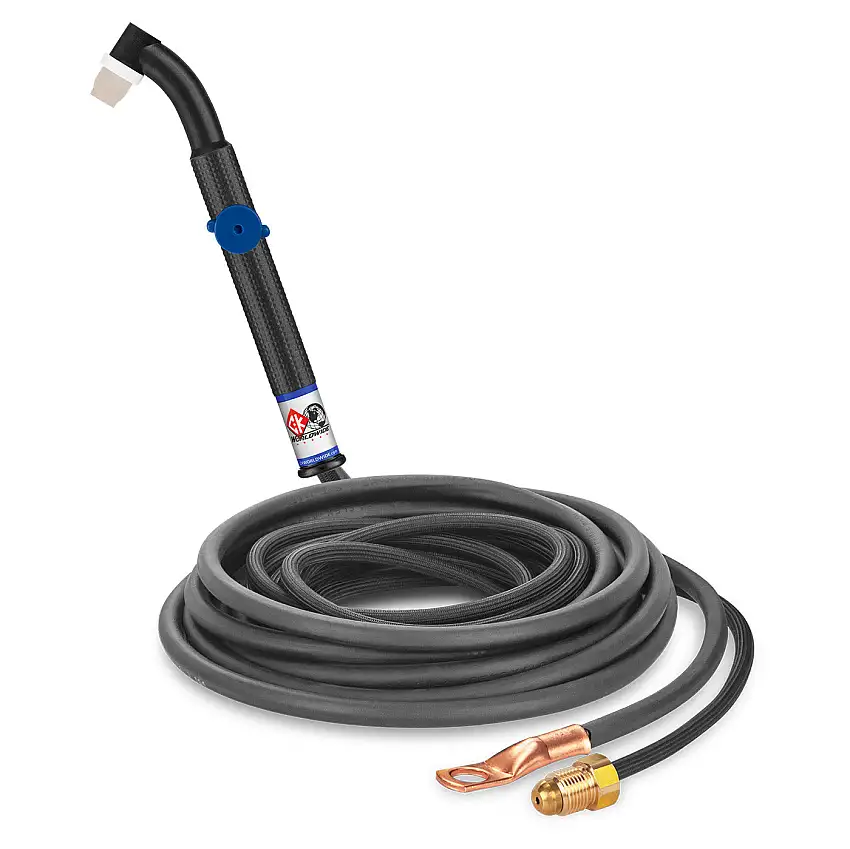

The CK24V-12-2SF FXdelivers professional-grade TIG welding performance with 90 amp capacity at 100% duty cycle, featuring CK Worldwide’s signature flex head technology that provides 40 degrees of movement in any direction for superior access in confined welding positions.

This gas-cooled TIG torch combines an integrated valve on the handle for precise gas flow control with superflex cables that enhance maneuverability without compromising durability. The 2-piece cable design with 12.5′ length provides optimal balance between reach and handling characteristics for demanding fabrication work.

• 90 amp rating— 100% duty cycle for continuous operation
• Flex head technology— 40° movement in any direction
• Integrated valve— precise gas flow control at the handle
• 2-piece superflex cables— 12.5′ length for enhanced flexibility
• Gas-cooled design— no water cooling required
• Compact profile— 8-1/4″ length, 2-1/4 oz weight
• Compatible with 2 Series consumables— standard CK80/CK90 parts

Compatible Consumables

• 2C40— .040″ (1.0mm) Collet
• 2C116— 1/16″ (1.6mm) Collet
• 2CB40— .040″ (1.0mm) Collet Body
• 2CB116— 1/16″ (1.6mm) Collet Body
• 2A4— #4 (1/4″) Alumina Cup
• 2A5— #5 (5/16″) Alumina Cup
• 2A6— #6 (3/8″) Alumina Cup
• 200L— Long Backcap
• HS— Standard Handle
• VK— Replacement Valve

Compatible with CK80 and CK90 series consumables, this torch excels in precision welding applications where access is limited and consistent gas coverage is critical. The valve-controlled gas flow makes it ideal for thin materials and applications requiring frequent starts and stops.
