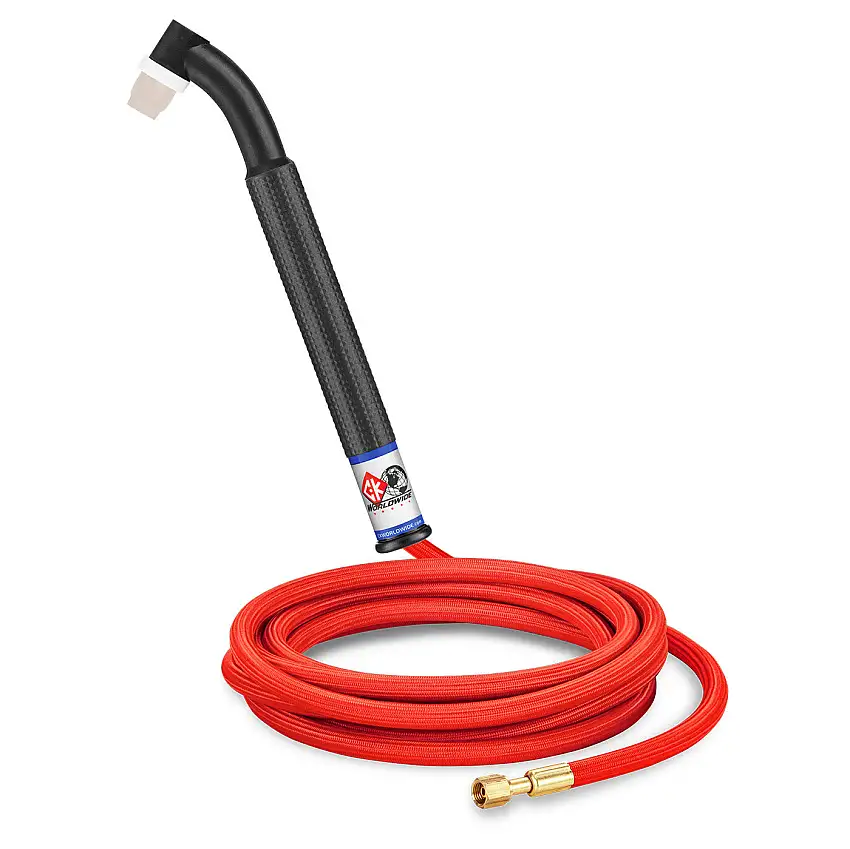

The CK Worldwide CK24-12-RSF FX delivers 90 amp AC/DC TIG capabilitywith a precision flex head that articulates 40 degrees in any directionfor superior access in tight spaces and complex weldments. This gas-cooled torch operates at 100% duty cyclefor continuous heavy-duty welding applications.

Built with superflex cables for enhanced maneuverability, this torch excels in production environments where accessibility and extended operation are critical. The flex head design reduces operator fatigue during overhead or confined space welding while maintaining precise arc control.

• 90 amp ratingat 100% duty cycle AC high frequency or DC straight polarity
• Flex head articulation— 40 degrees in all directions for tight space access
• 12.5-foot superflex cablesfor maximum flexibility and reach
• Gas-cooled construction— reliable heat dissipation without coolant systems
• Overall length:8-1/4″ (20.9cm)
• Weight:2-1/4 oz (64gm)
• Thread pattern:3/8″ x 32
• Compatible with 8 Series consumables and accessories

Compatible Consumables

• 8C40— .040″ (1.0mm) Collet
• 8C116— 1/16″ (1.6mm) Collet
• 8CB40— .040″ (1.0mm) Collet Body
• 8CB116— 1/16″ (1.6mm) Collet Body
• 8A4— #4 (1/4″ 6.4mm) Alumina Cup
• 8A5— #5 (5/16″ 8.0mm) Alumina Cup
• 8A6— #6 (3/8″ 9.6mm) Alumina Cup
• 8GL40— .040″ (1.0mm) Gas Lens
• 8GL116— 1/16″ (1.6mm) Gas Lens
• 80THS— Standard Heatshield

This flex head torch is ideal for pipe welding, pressure vessel fabrication, and precision assembly work where joint access is challenging. Uses standard 8 Series consumables shared with CK80, CK90, and CK180 models for simplified inventory management.
