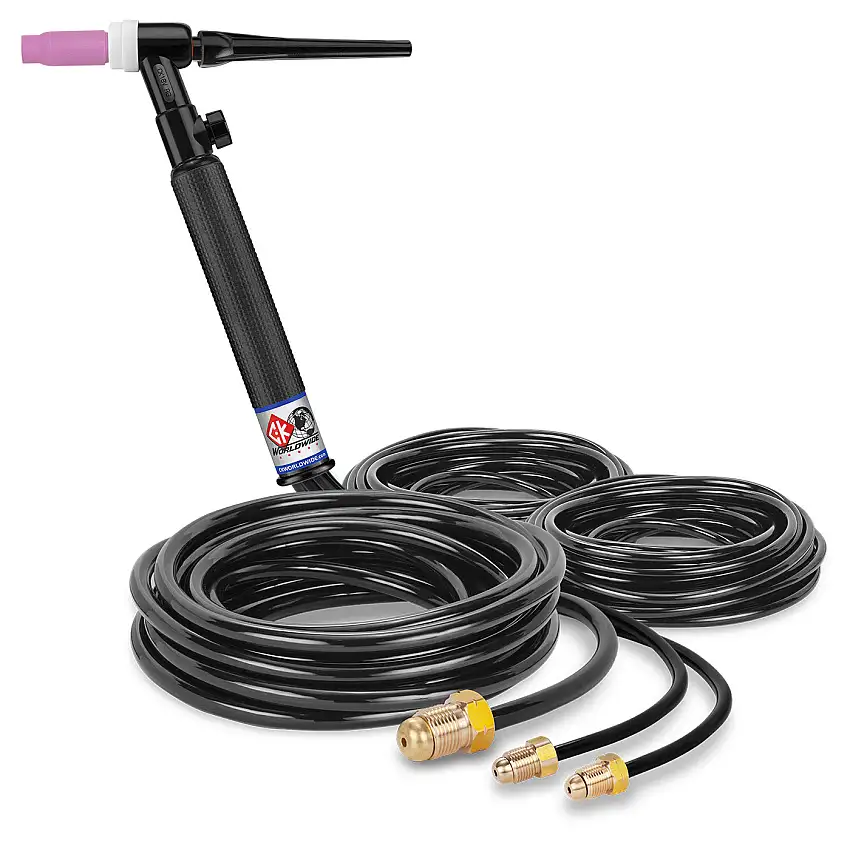

The CK18V-25 delivers 350 amp capacity at 100% duty cyclewith water-cooled reliability for demanding fabrication applications. This rigid head torch features an integrated valve for precise gas flow control and comes with a 25-foot cable assembly for extended reach in larger welding operations.

Built for continuous heavy-duty welding, this torch handles both ACHF and DCSP processeswhile maintaining consistent performance through Max Flow water cooling technology. The rigid head construction ensures stable arc control for precision work, while the integrated valve allows fingertip adjustment of gas flow without interrupting the weld process.

• 350 amp rating— ACHF or DCSP at 100% duty cycle
• Water-cooled design— Max Flow technology for extended operation
• Rigid head construction— Stable, precise arc control
• Integrated valve control— Fingertip gas flow adjustment
• 25-foot cable assembly— Extended reach for shop versatility
• 3-piece cable design— Standard configuration
• Torch dimensions— 9-1/2″ length, 6.5 oz weight

Compatible Consumables

• 300S— Short Backcap
• 300L— Long Backcap
• 3C116— 1/16″ Collet
• 3C332— 3/32″ Collet
• 3C418— 1/8″ Collet
• 3CB116— 1/16″ Collet Body
• 3CB332— 3/32″ Collet Body
• 3CB418— 1/8″ Collet Body
• 3A5— #5 Alumina Cup
• 3A6— #6 Alumina Cup

This torch is part of the CK18 3 Series family and accepts standard 3 Series consumables for cost-effective operation. Compatible with standard power sources requiring 350 amp water-cooled TIG torch connectivity.
