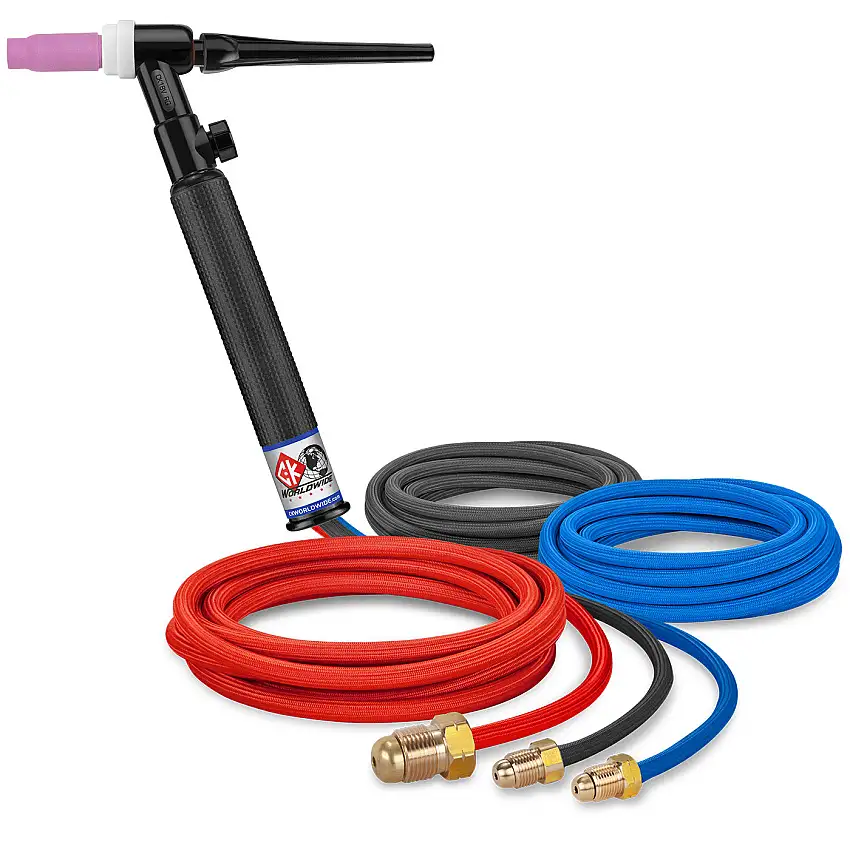

The CK18V-12SFdelivers professional-grade TIG welding performance with 350 amp capacity at 100% duty cycle, featuring an integrated valve for precise gas flow control and water-cooled operation for extended welding sessions. This rigid head torch combines arc stability with ergonomic valve control, making it ideal for high-amperage applications requiring consistent gas coverage.

• 350 amp AC/HF or DC/SP at 100% duty cycle
• Water-cooled with Max Flow technology
• Rigid head construction for superior arc stability
• Integrated valve on handle for gas flow control
• 12.5′ SuperFlex cablefor maximum flexibility
• 3-piece cable design
• 9-1/2″ overall length, 6.5 oz weight
• 3 Series head accessories compatibility

Compatible Consumables

• 300S— Short Back Cap
• 300L— Long Back Cap
• 3C116— 1/16″ Collet
• 3C332— 3/32″ Collet
• 3C418— 1/8″ Collet
• 3CB116— 1/16″ Collet Body
• 3CB332— 3/32″ Collet Body
• 3CB418— 1/8″ Collet Body
• 3A5— #5 Alumina Cup
• 3A6— #6 Alumina Cup

The CK18V-12SF works with all 3 Series consumables and accessories, making it compatible with standard alumina cups, gas lenses, and gas saver systems. The integrated valve control eliminates the need for remote foot pedal gas control, providing welders with immediate gas flow adjustment at the torch handle for enhanced productivity in production welding environments.
