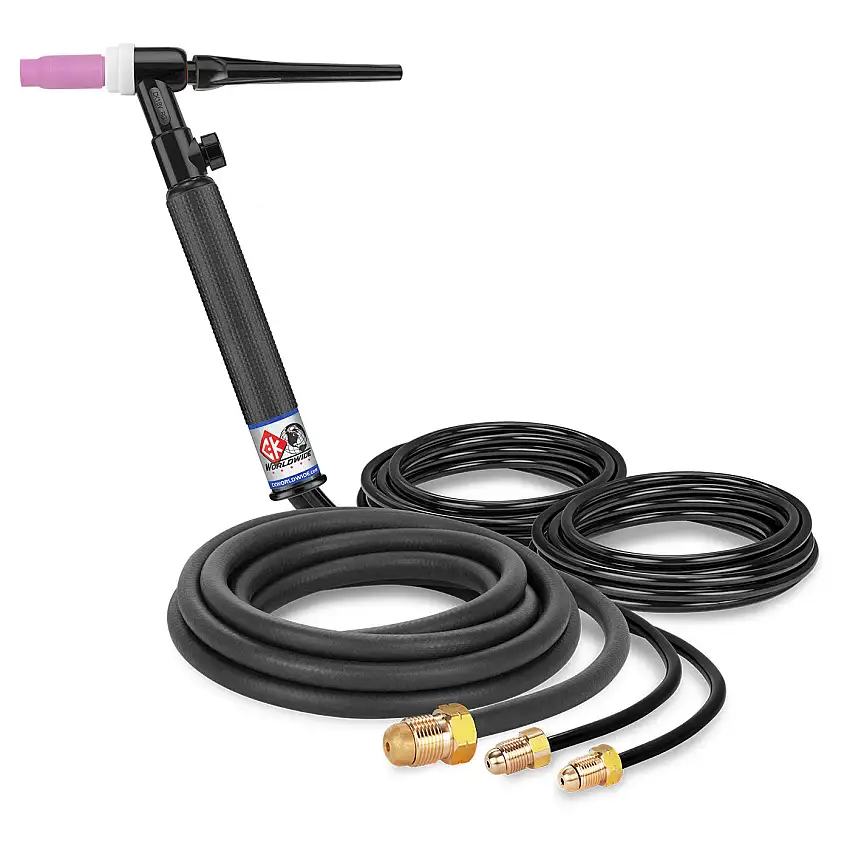

The CK Worldwide CK18V-12-R delivers 400 amp capacity at 100% duty cyclewith heavy-duty construction for demanding industrial TIG applications. This water-cooled torch features a rigid head design with integrated gas valve for precise flow control and enhanced operator convenience during extended welding operations.

• 400 amp rating:ACHF or DCSP at 100% duty cycle
• Water-cooled design:Superior heat dissipation for continuous operation
• Rigid head with valve:Stable arc control with convenient gas flow adjustment
• 12.5-foot cable length:3-piece cable configuration
• Heavy-duty construction:Uses same torch body as CK18
• 3 Series head accessories:Compatible with standard 3 Series consumables
• Overall length:9-1/2″ (24.1cm)
• Weight:6.5 oz (184gm)

Compatible Consumables

• 300S— Short Backcap
• 300L— Long Backcap
• 3C116— 1/16″ Collet
• 3C332— 3/32″ Collet
• 3C418— 1/8″ Collet
• 3CB116— 1/16″ Collet Body
• 3CB332— 3/32″ Collet Body
• 3CB418— 1/8″ Collet Body
• 3A5— #5 Alumina Cup
• 3A6— #6 Alumina Cup

Built for heavy-duty applications where high amperage and continuous operation are required, this torch is ideal for structural welding, pipe welding, and industrial fabrication. The integrated valve provides immediate gas flow control without reaching for remote controls, improving productivity in production environments.
