Description

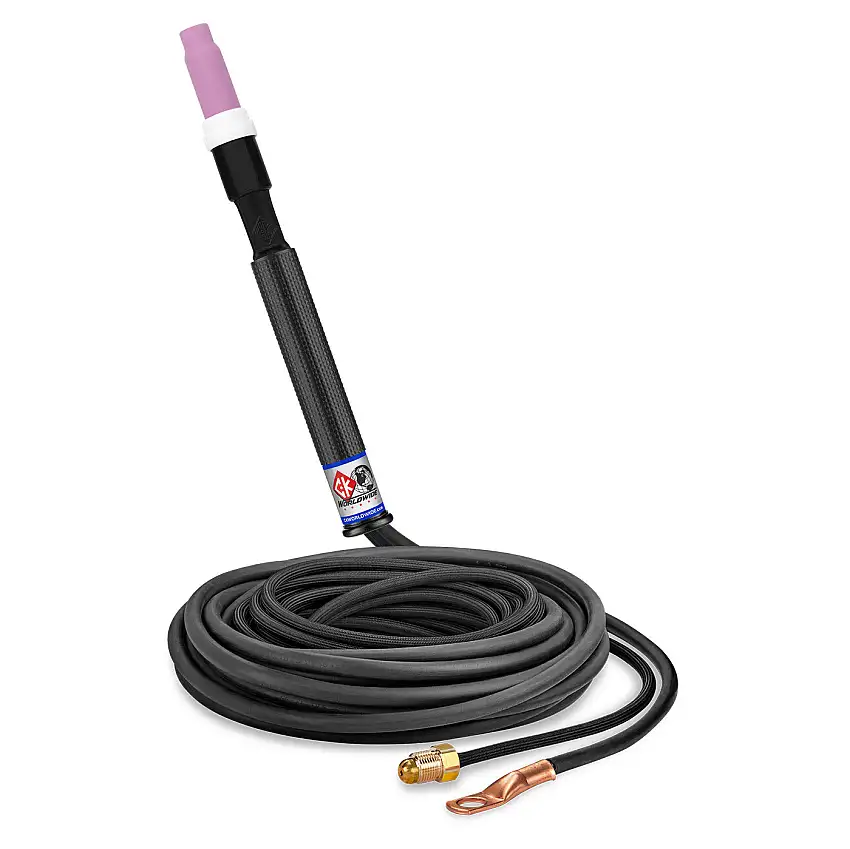

The CK17P-25-2 delivers precision TIG welding performance with its compact pencil-style design and reliable 150 amp capacity at 100% duty cycle. This gas-cooled torch features a rigid head configuration with 2-piece standard cables for enhanced maneuverability in tight spaces.
- 150 amp capacityat 100% duty cycle on AC/HF or DC straight polarity
- Pencil-style rigid headmeasuring 8-1/2″ (21.6cm) long
- Lightweight designat just 3 oz (85g) for reduced operator fatigue
- 25-foot 2-piece cable assemblyfor improved workspace mobility
- Gas-cooled operationeliminates need for water cooling systems
- Compatible with 3 Series consumablesfor versatile tungsten and cup options
Compatible Consumables
- 3C116— 1/16″ (1.6mm) Collet
- 3C332— 3/32″ (2.4mm) Collet
- 3C418— 1/8″ (3.2mm) Collet
- 3CB116— 1/16″ (1.6mm) Collet Body
- 3CB332— 3/32″ (2.4mm) Collet Body
- 3CB418— 1/8″ (3.2mm) Collet Body
- 3A5— #5 (5/16″ 8.0mm) Alumina Cup
- 3A6— #6 (3/8″ 9.6mm) Alumina Cup
- 3A8— #8 (1/2″ 12.8mm) Alumina Cup
- 300L— Long Backcap
Ideal for precision welding applications requiring superior control and access in confined areas. The pencil-style head design provides excellent visibility and tungsten control for detail work on thin materials and intricate joints.
