Description
Features & benefits
- Adjustable slot width from 8 – 15 mm using intermediate rings.
- The tenon can be produced with just one milling operation using the grooving cutterhead – turn the two parts of the grooving cutterhead against each other and adjust to the correct tenon size using intermediate rings (milling depth loss of 10 mm).
- For use in stationary table milling machines.
- Suitable for softwood, hardwood and all types of wood-based materials.
- MAN– approved for manual feed.

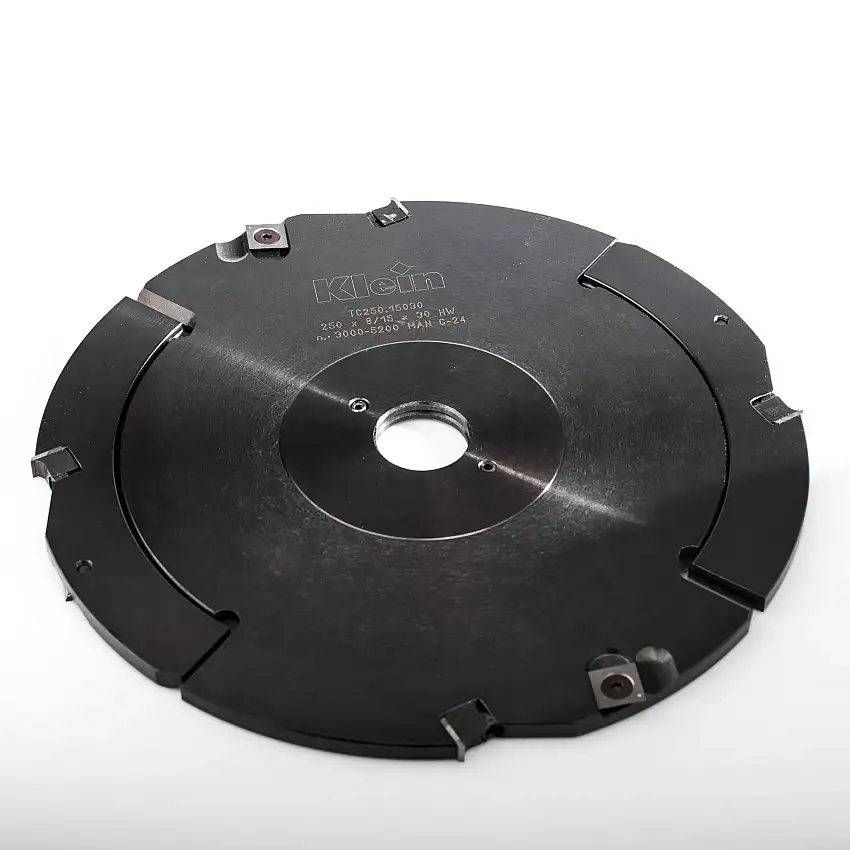

| Adjustable grooving cutterhead for tenons Ø 250 mm | |
|---|---|
| For manual feed, for slotting and tenoning corner joints. | |
| Technical data | |
| Ø | 250 mm |
| Maximum cutting depth (slotting) | 100 mm |
| Maximum cutting depth (when used as a tenoning cutter) | 90 mm |
| Number of cutting edges | 4 |
| Number of pre-cutters | 4 |
